Engineering Specification, Sizing & Lifecycle Economics

Navigating IEC 60534 sizing rules, thermal stress limits, specification pitfalls, and TCO evaluations for severe service valve selection.

1. Decision Considerations During Valve Specification

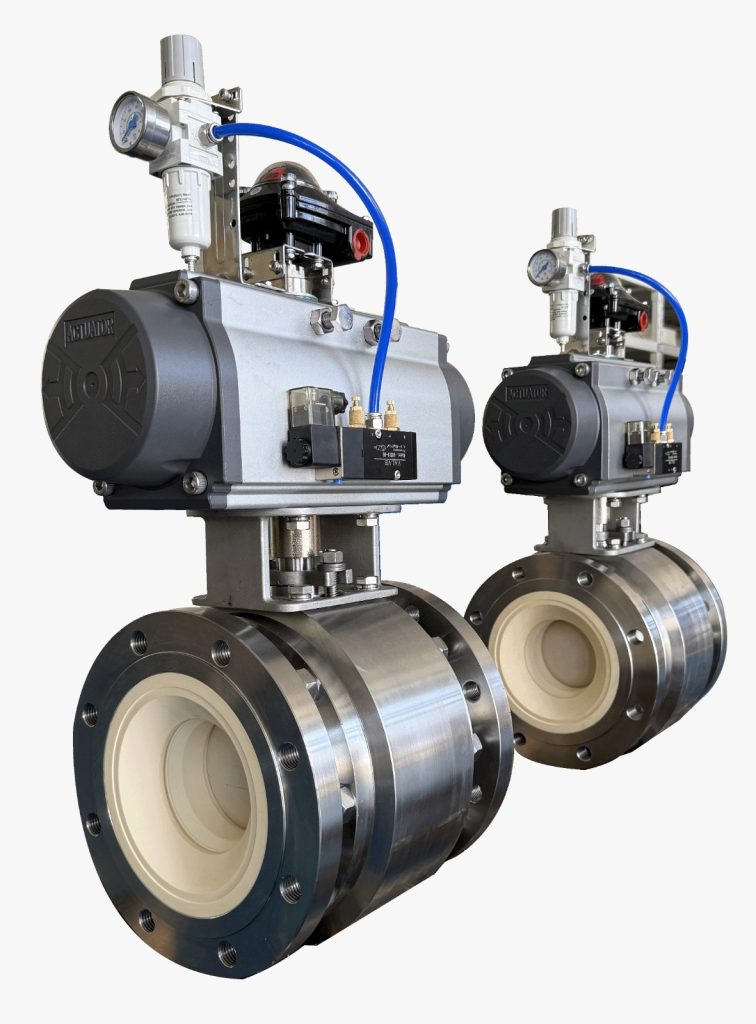

Specifying ceramic-coated segment ball valves for severe pulp and paper applications requires systematic evaluation of fluid dynamics, mechanical design, and thermal limits.

Specification Decision Logic
============================
  [ Slurry / Fiber Application ]
                 |
                 v
  Is Solids Hardness (Hp) > Metal Hardness (Hm)?
   +-- NO  --> [ Consider Standard Alloy / Hard-Facing ]
   |
  YES
   |
   v
  Is Pressure Ratio x_F > Choked Threshold x_FZ?
   +-- YES --> [ Calculate Cavitation Limits per IEC 60534-2-1 ]
   |
  NO
   |
   v
  Verify Thermal Shock Limits: Delta T < Delta T_critical
   +-- FAIL -> [ Select Toughened Zirconia or Thermal Barrier Bond Coat ]
   |
  PASS
   |
   v
  [ Specify Ceramic-Coated Segment Ball Valve ]

Flow Sizing and Cavitation Parameters (IEC 60534)

Valve sizing must follow IEC 60534-2-1 calculations, evaluating the liquid pressure recovery factor (FL) and differential pressure ratio (xF).

  1. Choked Flow Determination: Calculate the maximum allowable differential pressure (ΔPmax) before choking occurs:
    ΔPmax = FL2 (P1 – FF Pv)
    Where P1 is absolute inlet pressure, Pv is liquid vapor pressure, and FF is the liquid critical pressure ratio factor (FF = 0.96 – 0.28 √(Pv / Pc)).
  2. Cavitation Prevention: Operating above ΔPmax induces cavitation. While ceramics withstand moderate impingement, localized high-energy cavitation collapse can exceed the tensile strength of ceramic coatings, causing micro-fracturing. If cavitation cannot be avoided by process design, multi-stage pressure reduction or cavitation-mitigating segment trims must be specified.

Thermal Mismatch and Bond-Coat Integrity

A primary failure mode of ceramic coatings on metallic substrates (e.g., thermal-sprayed Cr2O3 on 316SS) is thermal stress-induced delamination. Metallic substrates exhibit thermal expansion coefficients (αmetal ≈ 16 × 10-6/K) significantly higher than ceramic layers (αceramic ≈ 6–10 × 10-6/K). Rapid thermal transients (ΔT > 80°C/min) induce shear stresses at the interface exceeding bond strength.

To prevent bond failure, engineers must verify that the manufacturer utilizes:

  • An intermediate bond-coat alloy (e.g., NiCrAlY or NiCr) engineered to bridge the thermal expansion gap.
  • Transformation-toughened ceramics such as Yttria-Stabilized Tetragonal Zirconia Polycrystals (Y-TZP), which offer higher fracture toughness (KIC ≈ 8–12 MPa·m1/2).

Seat Loading Philosophy and Leakage Class

  • Seat Architecture: Specify flexible, spring-energized seating assemblies (using Hastelloy or Elgiloy wave springs). Fixed, non-resilient metal seats generate excessive localized point loading against ceramic segments, increasing the risk of mechanical chipping during particulate entrapment.
  • Leakage Rating: Design requirements should reference ISO 5208 Rate A (zero visible leakage) or ANSI/FCI 70-2 Class V/VI for critical isolation/control boundaries. For abrasive stock service, resilient PEEK/reinforced PTFE seats backed by ceramic segments provide tight shutoff, whereas solid ceramic-on-ceramic seating is preferred for high-temperature chemical liquors (> 180°C).

2. Common Engineering Specification Mistakes

Critical specification errors often reduce valve reliability in severe paper mill applications:

1. Selecting High-Alloy Bodies While Neglecting Trim Wear

Engineers frequently specify expensive body alloys (e.g., Titanium Gr. 2, Hastelloy C-276) to prevent general corrosion in bleach plants or liquor lines, while retaining standard metal or low-grade hard-faced trims. Localized erosion strips the trim sealing faces within months, causing internal leakage and control loss while the valve body remains entirely intact. Correct approach: Match trim tribological hardness to particle hardness regardless of body alloy grade.

2. Equating Bulk Hardness Alone with Wear Life

Assuming Rockwell C hardness (HRC) directly correlates with abrasive wear resistance is a major misconception. Ductile hard-facing alloys (e.g., Stellite 6, ~42 HRC) deform under solid particle impingement at high impact angles (> 60°). Conversely, brittle ceramics resist low-angle sliding abrasion extremely well, but can chip under direct high-angle impingement if fracture toughness (KIC) is insufficient. Correct approach: Evaluate both Vickers hardness (HV) and fracture toughness (KIC) against the dominant fluid impingement angle.

3. Oversizing Control Valves

Specifying control valves based on line size rather than detailed Cv calculations forces the valve to operate at low openings (< 15% travel) during normal process conditions. Operating near the seat accelerates local fluid velocity (v ∝ Cv / A), focusing high-kinetic-energy erosive vectors directly on the primary sealing boundary. Correct approach: Size the valve segment such that normal operating flow occurs between 40% and 70% travel, keeping high-velocity jets clear of the primary seating surface.

4. Treating Pulp Slurries as Newtonian Fluids

Calculating valve Cv using standard water-based equations without correcting for pulp stock consistency results in under-sizing or flow instability. Yield stress (τ0) in fiber networks increases effective fluid viscosity at low shear rates. Correct approach: Apply apparent viscosity shear-rate corrections per TAPPI technical data sheets when sizing segment orifices for pulp consistencies exceeding 3%.

3. Lifecycle Cost Versus Initial Purchase Cost

While ceramic-coated segment ball valves require higher initial capital expenditure (CapEx) than standard metallic valves, Total Cost of Ownership (TCO) analysis reveals rapid payback in severe service applications.

Total Cost of Ownership (3-Year Horizon)
========================================
Standard Metallic Trim:
[ CapEx: 1.0x ] + [ Maintenance / Replacement (x6): 6.0x ] + [ Downtime Loss: 10.0x ] = 17.0x

Ceramic-Coated Trim:
[ CapEx: 3.0x ] + [ Maintenance / Inspection (x1): 0.5x ] + [ Downtime Loss: 0.0x ] = 3.5x

Total Cost of Ownership Equation

TCO = Ccap + ∑t=1..N [ (Cmaint(t) + Cdowntime(t) + Cenergy(t)) / (1 + r)t ]

Where:

  • Ccap: Initial procurement and installation cost.
  • Cmaint: Labor, spare parts, seal kits, and machining costs.
  • Cdowntime: Lost mill production value during unscheduled outages.
  • Cenergy: Value of compressed air leakage, internal steam/fluid bypass losses caused by degraded seat shutoff.
  • r: Discount rate; N: Asset evaluation period (years).

Reliability Metrics (MTBF Extension)

In high-solids green liquor dregs service or TiO2 filler slurry control, standard 316L or Stellite-faced segment valves frequently suffer seat leakage failure within 3 to 6 months. Field performance data confirms that ceramic-coated segment ball valves in identical operating locations routinely achieve service lives exceeding 36 to 60 months without trim refurbishment. Extending the Mean Time Between Failures (MTBF) by 6× to 10× yields significant economic benefits:

  • Direct Maintenance Savings: Eliminates 5 to 9 valve rebuild/replacement cycles over a 5-year operating window.
  • Unscheduled Outage Avoidance: Mill downtime in pulp production can exceed $20,000 to $50,000 per hour. Preventing a single unscheduled line shutdown completely offsets the initial procurement premium of ceramic trim.
  • Process Variance Reduction: Maintaining low friction and zero seat erosion preserves control loop tuning parameters (P, I, D). Reduced variability in stock consistency directly yields raw material savings and higher final paper sheet quality.

4. Engineering Summary & Specification Checklist

Specifying severe-service control valves for pulp and paper applications requires matching material properties and valve geometry to process degradation mechanisms:

  1. Failure Mode Root Cause: Metallic valve trims fail due to micro-cutting abrasion (Hp/Hm > 1.2), fiber dewatering, scale accumulation, and erosion-corrosion synergy.
  2. Geometric Suitability: Segment ball valves provide inherent mechanical advantages for slurry handling, including high capacity (Cv), a shearing V-notch edge for fiber cutting, continuous surface wiping, and high control rangeability (> 150:1).
  3. Material Performance: Ceramic coatings (ZrO2, Al2O3, Cr2O3) deliver surface hardness values (1100–2200 HV) that exceed particle hardness, dropping abrasive wear rates by orders of magnitude while lowering friction (μ < 0.10) and eliminating scale adhesion.
  4. Specification Rigor: Valve sizing must account for non-Newtonian fluid dynamics, prevent choked-flow cavitation per IEC 60534, enforce proper thermal transition bond-coat specifications, and ensure normal operation occurs between 40% and 70% valve travel.
  5. Economic Justification: TCO evaluations demonstrate that the higher initial capital cost of ceramic-coated segment ball valves is typically recovered within months by extending MTBF, eliminating unscheduled mill downtime, and stabilizing process control loops.

Technical Specification Checklist

Process Parameters Verification:

  • ☐ Document fluid pH, operating temperature range, and maximum thermal transient rate (ΔT/Δt).
  • ☐ Identify solid particle composition, concentration (wt%), and particle size distribution (PSD).
  • ☐ Determine maximum particle Vickers hardness (Hp) relative to proposed trim hardness (Hm).
  • ☐ Calculate fluid shear yield stress (τ0) for pulp consistencies > 3%.

Valve Sizing & Fluid Dynamics (IEC 60534):

  • ☐ Calculate required Cv across minimum, normal, and maximum flow conditions.
  • ☐ Verify normal operating position falls within 40%–70% valve stroke.
  • ☐ Calculate liquid pressure recovery factor (FL) and ensure ΔP < ΔPmax to avoid cavitation.
  • ☐ Select V-notch angle (30°, 60°, 90°) based on required low-flow rangeability.

Materials & Mechanical Architecture:

  • ☐ Specify ceramic coating/insert material (ZrO2, Al2O3, or SiC) with Vickers hardness > 1200 HV.
  • ☐ Confirm intermediate bond-coat specification to mitigate coefficient of thermal expansion (α) mismatch.
  • ☐ Require flexible, spring-energized seat assembly to prevent point-load cracking of ceramic surfaces.
  • ☐ Mandate polished surface finish (Ra ≤ 0.1 μm) on dynamic sealing faces.

Quality & Testing Standards:

  • ☐ Pressure containment and wall thickness compliance per ASME B16.34 / EN 12516.
  • ☐ Seat leakage verification per ISO 5208 Rate A or ANSI/FCI 70-2 Class V/VI.
  • ☐ Actuator sizing safety margin ≥ 1.5× maximum dynamic break-away torque.
