ISO 22153 Electric Actuator Classes Explained: Why Class A, B, C and D Matter for Valve Reliability

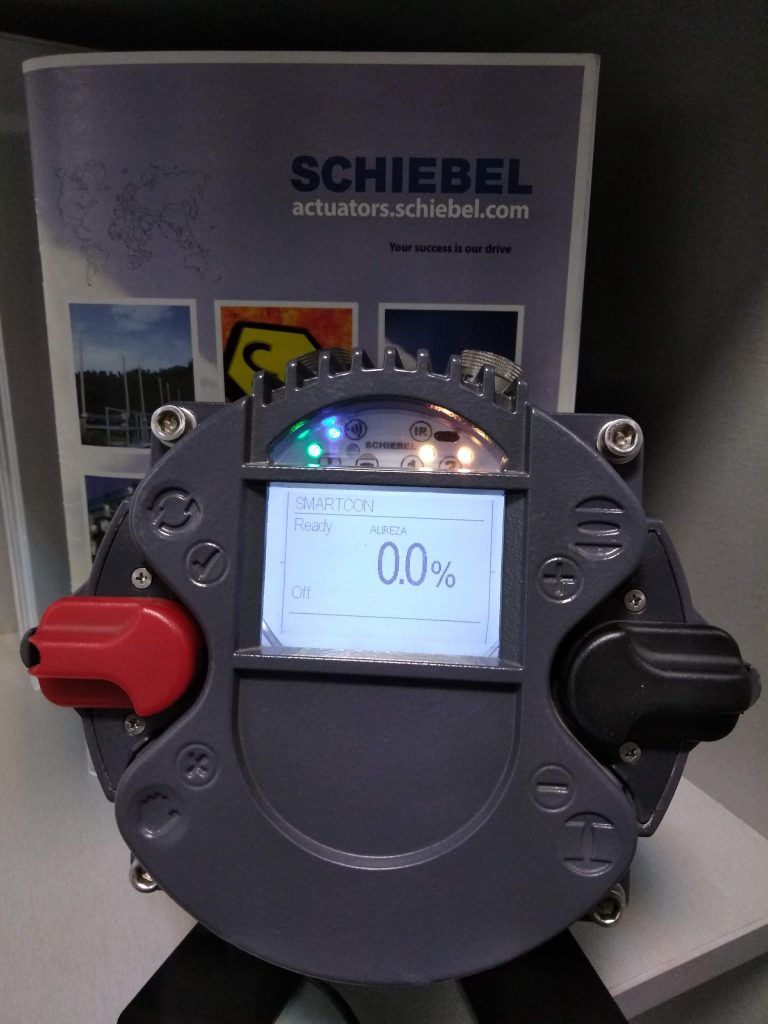

Electric actuators are widely used to automate butterfly valves, ball valves, plug valves, and gate valves across industrial process facilities. However, actuator selection involves far more than matching torque output and supply voltage. Many actuator failures occur because the actuator duty classification does not match the actual operating requirements of the valve application.
An actuator may provide sufficient torque and meet all specification requirements, yet still experience premature wear, thermal overload, excessive motor cycling, or reduced operational life when installed in the wrong duty environment. To address this challenge, ISO 22153 establishes performance requirements and duty classifications that help engineers select electric actuators according to their intended operating conditions.
Understanding ISO 22153 Class A, B, C, and D classifications helps improve actuator reliability, reduce maintenance costs, and ensure long-term valve automation performance across industrial facilities.
What Is ISO 22153?
ISO 22153 is an international standard that specifies general requirements, testing procedures, performance criteria, environmental requirements, and duty classifications for electric actuators used in industrial valve automation systems.
The standard provides a common framework for evaluating actuator performance under different operating conditions while establishing duty categories that reflect how frequently the actuator is expected to operate during service.
ISO 22153 helps engineers compare actuator capabilities, assess endurance requirements, and select equipment suitable for both isolation and modulating valve applications.
Why Duty Classification Matters More Than Torque Alone
One of the most common actuator selection mistakes is focusing only on torque output. While torque is essential, actuator lifespan and reliability are equally influenced by operating frequency, duty cycle, motor heating, and mechanical wear.
For example, an actuator designed for occasional valve operation may perform perfectly on an isolation valve that moves only a few times per week. However, the same actuator may fail prematurely if installed on a continuously modulating control valve that cycles thousands of times per day.
ISO 22153 addresses this issue through duty classifications that define the expected operating characteristics of electric actuators.
ISO 22153 Duty Classes Explained
Class A – On-Off Duty
Class A actuators are designed for infrequent operation where the valve normally remains in either the fully open or fully closed position.
Typical applications include:
- Pipeline isolation valves
- Storage tank isolation
- Utility systems
- Emergency shutdown valves (ESD)
- Process isolation applications
Class A actuators are optimized for reliable open-close operation but are not intended for continuous positioning or frequent modulation.
Class B – Inching and Positioning Duty
Class B actuators are designed for applications requiring occasional intermediate positioning between fully open and fully closed positions.
Typical applications include:
- Bypass valves
- Flow balancing systems
- Occasional process adjustment
- Utility control applications
- Positioning services
These actuators support limited positioning adjustments while maintaining longer service life than would be possible with a Class A actuator under similar operating conditions.
Class C – Modulating Duty
Class C actuators are designed for frequent positioning and process control applications where the valve continuously responds to changing operating conditions.
Typical applications include:
- Flow control loops
- Pressure control systems
- Temperature regulation
- Process control valves
- Industrial automation systems
Class C actuators are engineered to withstand significantly higher numbers of starts, stops, and position changes than Class A actuators. Enhanced motor design, thermal protection, control electronics, and mechanical endurance help support continuous process control applications.
Class D – Continuous Modulating Duty
Class D represents the highest duty classification defined by ISO 22153. These actuators are intended for demanding applications involving continuous modulation and extremely frequent valve positioning.
Typical applications include:
- Power generation systems
- Turbine control applications
- Advanced process control loops
- Critical utility regulation systems
- Continuous process optimization applications
Class D actuators provide the highest endurance capability and are specifically designed for applications where constant adjustment is required throughout operation.
Class A vs Class C: The Most Common Selection Mistake
One of the most expensive mistakes in valve automation occurs when a Class A actuator is installed on a modulating control valve.
Initially, the actuator may appear to operate normally because torque requirements are satisfied. However, continuous positioning causes excessive motor starts, thermal cycling, gear wear, and accelerated component degradation.
Over time, this leads to:
- Motor overheating
- Gearbox wear
- Reduced positioning accuracy
- Frequent maintenance intervention
- Unexpected actuator failure
For control applications, actuator duty classification is often more important than maximum torque rating alone.
ISO 22153 vs ISO 5211
Engineers frequently confuse ISO 22153 and ISO 5211 because both standards are associated with valve automation.
| ISO 22153 | ISO 5211 |
|---|---|
| Actuator performance requirements | Actuator mounting interface standard |
| Duty classification | Flange dimensions |
| Endurance verification | Mechanical compatibility |
| Operational performance | Valve-actuator connection requirements |
| Reliability-focused | Installation-focused |
ISO 5211 ensures that an actuator can physically mount to a valve. ISO 22153 helps determine whether the actuator can reliably perform the intended operational duty.
ISO 22153 vs EN 15714
Both standards address actuator performance, but they focus on different actuator technologies.
| ISO 22153 | EN 15714 |
|---|---|
| Electric actuators | Pneumatic, hydraulic, manual, and electric actuators |
| Duty classification emphasis | General actuator design requirements |
| Electrical performance verification | Broader actuator performance requirements |
| Electric actuator operation | Multiple actuator technologies |
Together, these standards help establish performance expectations across different actuator technologies used in industrial valve automation.
ISO 22153 vs IEC 60529
Another common misconception is assuming that a high IP rating guarantees actuator reliability.
| ISO 22153 | IEC 60529 |
|---|---|
| Actuator performance standard | Ingress protection standard |
| Duty classifications | IP ratings |
| Endurance requirements | Dust and water protection |
| Operational capability | Environmental enclosure performance |
An actuator may have an IP68 enclosure but still fail if the selected duty class does not match the application requirements.
ISO 22153 and Functional Safety Requirements
ISO 22153 focuses on actuator performance and operational classification. It does not replace functional safety standards such as IEC 61508 or IEC 61511.
In Safety Instrumented Systems (SIS), engineers must evaluate:
- Safety Integrity Level (SIL)
- Dangerous failure rates
- Proof testing requirements
- Diagnostic coverage
- Emergency shutdown performance
An actuator may comply with ISO 22153 and still require additional functional safety assessment before being used within SIL-related applications.
Common Electric Actuator Failures Despite ISO 22153 Compliance
Compliance with ISO 22153 does not automatically guarantee long-term reliability. Many failures result from application-related issues rather than manufacturing defects.
Incorrect Duty Classification
Using a Class A actuator in a modulating application often results in premature wear and thermal overload.
Excessive Starts Per Hour
Frequent motor cycling can exceed design limitations and shorten actuator life.
Thermal Overload
High ambient temperatures combined with intensive operation can increase internal motor temperatures beyond acceptable limits.
Insufficient Torque Margin
Valve torque requirements frequently increase over time because of wear, contamination, and changing process conditions.
Water Ingress and Environmental Exposure
Improper installation, damaged cable entries, or inadequate environmental protection can affect actuator reliability.
Position Sensor and Feedback Failures
Faulty feedback systems can reduce positioning accuracy and disrupt process control performance.
Poor Commissioning Practices
Incorrect calibration, travel settings, and torque configuration may create operational instability from the beginning of service.
How to Select the Correct Electric Actuator
Successful actuator selection requires evaluating the complete application rather than focusing on a single specification parameter.
Key considerations include:
- Valve breakaway torque
- Running and seating torque requirements
- Expected starts per hour
- On-off versus modulating service
- Ambient temperature conditions
- Ingress protection requirements
- Control system integration
- Communication protocols
- Power supply stability
- Functional safety objectives
Matching actuator duty classification to actual operating conditions remains one of the most important factors affecting long-term reliability.
Applications That Require Class C or Class D Actuators
Many industrial facilities require continuous process regulation that exceeds the capabilities of standard on-off actuators.
Examples include:
- LNG process control systems
- Refinery process units
- Power generation facilities
- Chemical processing plants
- Pulp and paper production systems
- District heating networks
- Water treatment control systems
- Industrial utility regulation applications
In these environments, selecting the correct duty classification directly influences reliability, maintenance cost, and operational performance.
Frequently Asked Questions
What is ISO 22153?
ISO 22153 is an international standard that establishes performance requirements, testing criteria, and duty classifications for electric actuators used in industrial valve automation systems.
What is a Class A actuator?
A Class A actuator is designed for infrequent open-close operation typically associated with isolation and shutdown valve applications.
What is a Class C actuator?
A Class C actuator is designed for modulating service where frequent valve positioning is required for process control.
What is the difference between Class A and Class C?
Class A actuators are intended for on-off duty, while Class C actuators are engineered for frequent positioning and continuous control applications.
Does ISO 22153 guarantee actuator reliability?
No. Reliability also depends on correct sizing, environmental suitability, installation quality, maintenance practices, and application conditions.
Can ISO 22153 actuators be used in SIL applications?
Potentially yes, but additional assessment under IEC 61508 or IEC 61511 functional safety requirements is typically required.
Key Takeaway
ISO 22153 provides an important framework for evaluating electric actuator performance and operating duty. The standard helps engineers understand how actuator classification influences endurance, positioning capability, and long-term operational reliability.
The most common actuator selection errors occur when duty classification is overlooked. Choosing the correct ISO 22153 Class A, B, C, or D actuator is often just as important as selecting the correct torque output. Matching actuator capability to real operating conditions helps improve reliability, reduce maintenance costs, and maximize valve automation performance throughout the equipment lifecycle.
