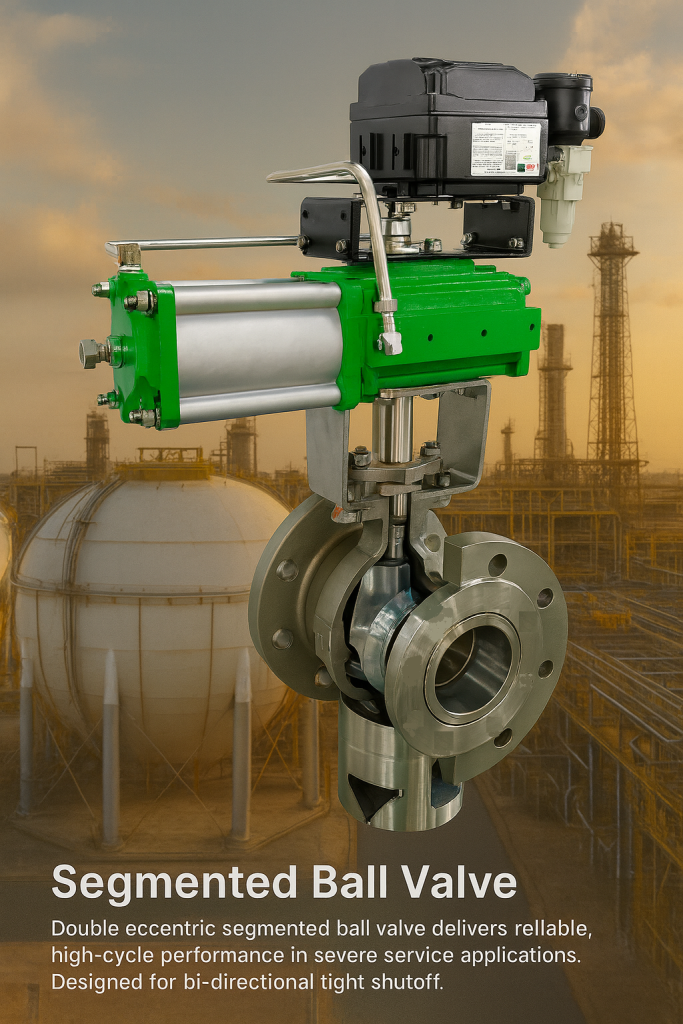

Segment ball valves combine the simplicity of a ball valve with the control performance of a globe valve.
The V-notch port on the segment ball contributes to strong shear stress to cut through media with fibers and particles. Consequently, this v-port segment valve is a good general control valve for most pulp and paper process applications, or similar flow that contains fibers and particles.
This makes them ideal to meet the most stringent requirements in critical applications such as oil and gas, hydrogen, chemical, petrochemical, mining, and liquefied natural gas (LNG).
Technical Highlights:
- Sizes: DN25 – DN500
- Pressure classes: PN16 – PN63 / ANSI 150 – 600
- Design: V-port segment ball, one-piece or two-piece body
- Flow characteristic: equal percentage
- Actuation: pneumatic (with positioner), electric, or electro-hydraulic
- Body materials: WCB, CF8, CF8M, CF3M, etc
- Metal Seat:F8+HCr/304+STL, CF8M+HCr/316+STL,CF3+HCr/304L+STL, etc
- Soft Seat: PTFE, reinforced PTFE, Devlon/PEEK
- Leakage class: Class IV or V
- End Connection: Flange Type/ Wafer Type
- Mounting: ISO 5211 interface
- Standards: IEC 60534, ISO 5211, ASME B16.34
Key Advantages:
- Compact design with high Cv capacity
- Smooth control for liquids, gases, pulp, or slurry
- Low operating torque, suitable for smart positioners
- Metal or soft-seated options for different temperatures
- Ideal for pulp & paper, chemical, and general process applications
