Pneumatic Actuators for Reliable Valve Automation
Nordenflow offers a versatile range of pneumatic actuators designed for modularity and fail-safe reliability. Whether you require a compact Rack & Pinion unit for standard process loops or a heavy-duty Scotch Yoke for high-breakout torque, our units are engineered to exceed EN 15714-3 requirements.
Designed to operate in extreme environments, these units are ATEX certified and SIL 3 capable, making them the ideal choice for Emergency Shutdown (ESD) and modulating control. We provide seamless integration with smart positioners and solenoid manifolds for complete automation packages in the Energy, Marine, and Pulp & Paper sectors.

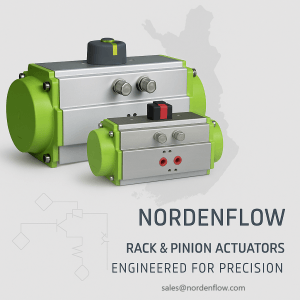

Part-Turn (Quarter-Turn) Actuator
Rack & pinion or Scotch-yoke (Symmetric & Canted)
High performance and high reliability
Fully compliant with the latest international regulations
More applicable specifications and higher cost performance
Better industrial shape is more suitable for various application environments
⚙️Technical Features
- Torque range: Up to 250,000 Nm (Scotch-Yoke) /
10,000 Nm (Rack & Pinion) - Designs: Double-acting / Spring-return
- Rotation: 90° (adjustable ±5°)
- Supply pressure: 2 … 8 bar
- Materials: Anodized aluminium / Carbon Steel /Stainless steel 316 housings
- Interfaces: Direct-mount for Solenoids and PST-Positioners
- Temperature: −40°C … +80°C (low-/high-temp kits)
- Protection: up to IP66/67
- Safety: SIL 3 Capable (IEC 61508), ATEX II 2 GD c T6
🔩 Key Advantages
- Compact footprint, high torque density
- Simple maintenance, interchangeable modules
- Excellent corrosion resistance (offshore/marine kits)
- Compatible with PST (Partial Stroke Test) for ESD verification
Typical Applications
- On/Off & control of ball/ butterfly/ plug valves
- ESD and Blowdown services (with PST)
- LNG, marine, pulp & paper, petrochemical utilities

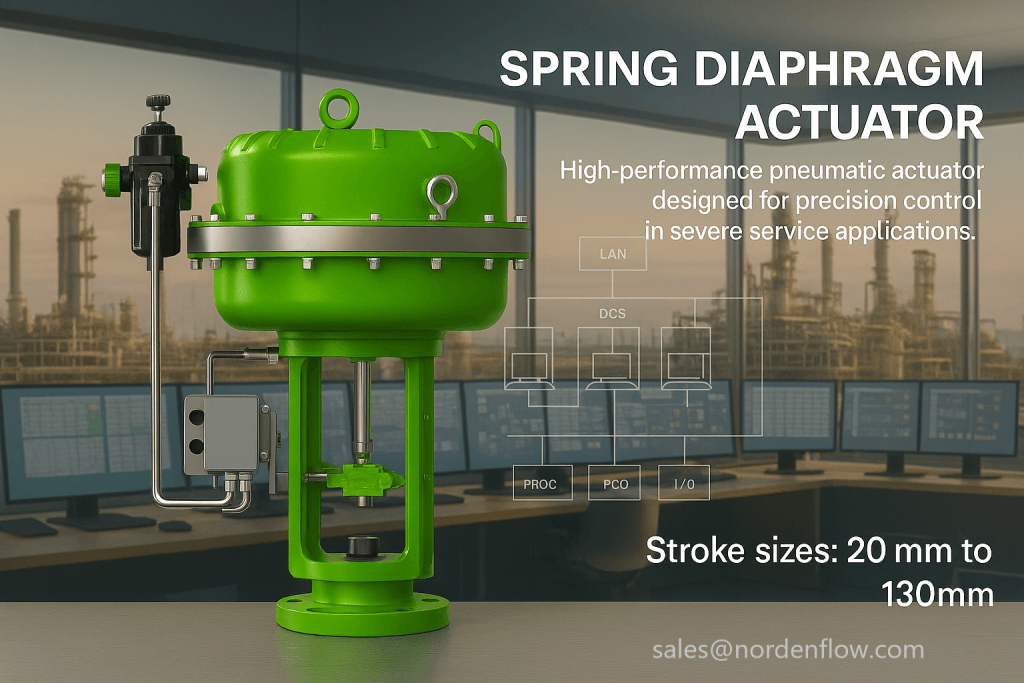

Linear Actuator
Diaphragm or Piston type actuator
Diaphragm Actuator is a high-performance pneumatic actuator designed for precision control in severe service applications
⚙️Technical Features
- Thrust force: 10 … 300 Kn (expand if needed)
- Designs: direct-acting (DA) and reverse-acting (RA) configurations
- Stroke sizes: 20mm to 130mm
- Cylinder standards: ISO 15552 / ISO 6431 (where applicable)
- Supply pressure: 4 … 8 bar
- Materials: Carbon Steel
- Position control: I/P + smart positioners, 4–20 mA/HART options
- Temperature: −40°C … +80°C (low-/high-temp kits)
- Protection: IP66/67; wiper/seal kits for dusty or corrosive media
- Top or side-handwheel manual override option
- Safety: SIL2-capable, ATEX/IECEx options for hazardous areas
🔩 Key Advantages
- High thrust with precise positioning
- Stable modulating control with low hysteresis
- Service kits and stem nut options for major valve brands
Typical Applications
- Globe/gate control valves (pressure/flow/level)
- Anti-surge & bypass control, steam conditioning
- Refinery, Petrochemical, Power plant, and water treatment loops
To ensure reliable field performance, we supply complete pneumatic valve packages integrating certified components like PST, regulators, solenoid valves (SOV), and Namur interface manifolds.
Packages & Accessories
- Solenoid valves (SS316 / Ex-proof), manifolds, quick-exhaust
- Filter regulators & high-pressure regulators
- Limit switches, smart & analog positioners
- PST modules and SOV test ports
- Mounting kits, ISO 5211 adapters, drive bushings
- Fire-proof jackets (optional)
