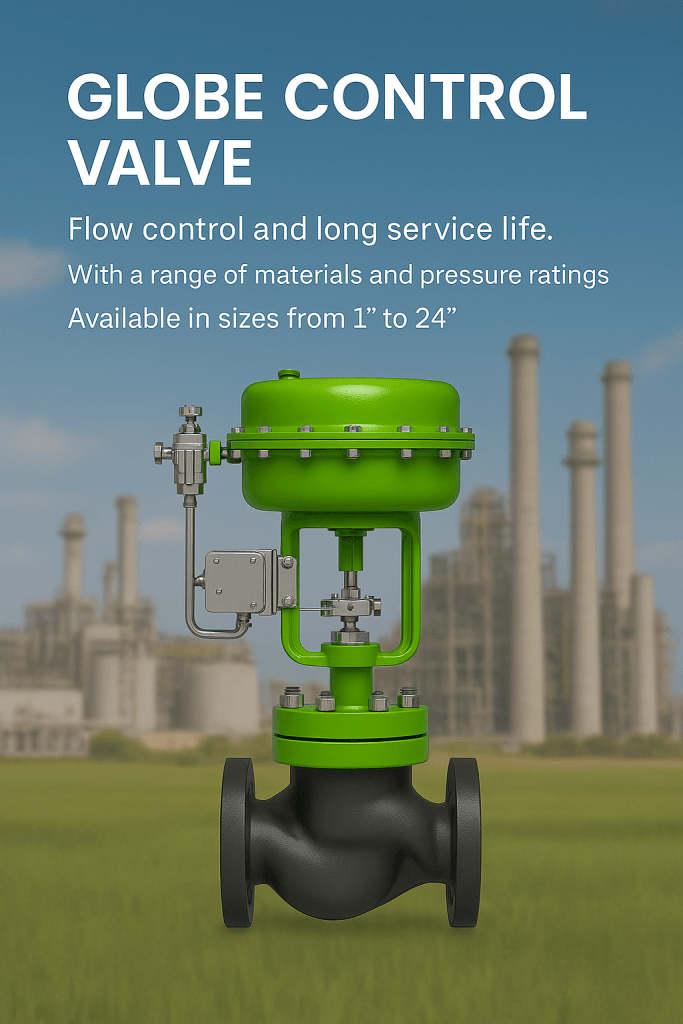

Globe Control Valves for Critical Process Applications
Precision control, long service life, and industry-grade performance for demanding flow, pressure, and temperature applications.
Engineered for industrial plants in Energy, Marine, Chemical, Pulp & Paper, Water, and Process Automation
High-Performance Globe Control Valves: Engineered to ASME & EN Standards
Nordenflow globe control valves are engineered for precision modulation and stable process control, meeting the strict requirements of ASME B16.34 and EN 12516. With a modular design optimized for interchangeability, these valves are built for seamless integration into plants requiring ISA 75.08.01 face-to-face dimensions.
Supporting pneumatic, electric, and electro-hydraulic actuation, our range is designed to maintain ANSI/FCI 70-2 Class IV, V, or VI leakage rates. Whether your process involves high-pressure steam, cryogenic liquids, or corrosive gas, these valves provide predictable Flow Coefficients (Cv/Kv) and long-term seat integrity.
Engineered for Severe Service:
–Cavitation Control: Specially designed multi-stage trims to prevent erosion in high-pressure drop liquid services.
–Noise Reduction: Perforated cage trims to ensure compliance with plant noise regulations.
–Fugitive Emissions: Stem packing certified to ISO 15848-1 to meet strict environmental standards (EPA/EU)
Technical Highlights:
- Sizes: DN15 – DN600 (1/2″ – 24″)
- Pressure classes: PN16 – PN160 / ASMEPN16, PN40, PN63, PN100 | ASME Class 150, 300, 600, 900 Class 150 – 900
- Trim Types: Parabolic, Contoured, Multi-Stage (Anti-Cavitation/Noise)
- Flow characteristics: linear/equal percentage
- End Connection: Flanged, Weld, ASME B16.34
- Body materials: WCB, CF8M, stainless steel, duplex, special alloys
- Trim Design: Parabolic Plug, Single Seat, One Stage, Two Stage, Multi Stage, Disc Stack
- Actuation: pneumatic, electric, or electro-hydraulic
- Design Standards: ASME B16.34, ISA 75.08
- Certifications: ATEX / PED / SIL
- Leakage Class: Class IV, V, & VI (per ANSI/FCI 70-2 & IEC 60534-4)
- End Connections: Flanged (RF, RTJ), Butt-Weld, Socket-Weld
- Valve Inspection and Testing: API 598
Commercial Advantages for Industrial Operators:
1. High-accuracy modulation:
Engineered for tight control in dynamic processes, minimizing energy waste and maximizing output quality.
2. Low maintenance, low lifecycle cost:
The modular clamping seat system enables quick trim replacement without special tools, reducing downtime and maintenance OPEX.
3. Noise & cavitation control:
Multi-stage and low-noise trims maintain stable flow even under severe pressure drop conditions — protecting piping and equipment. anti-cavitation trim, multi-stage pressure reduction, low-dB trim.
4. Flexibility across processes:
Suitable for steam, condensate, fuel gases, chemical media, abrasive slurries, and thermal oils.
5. Full compatibility with modern control systems:
Supports smart positioners, digital feedback, and integration into advanced control architectures and SCADA/DCS systems.
6. ATEX, SIL, PED options for regulated industries:
Ideal for energy production, LNG, petrochemical plants, and hazardous-area operations.
Review and Standard Comparison:
| Feature | European Standard (EN) | American Standard (ASME/ISA) |
| Design & Rating | EN 12516 | ASME B16.34 |
| Face-to-Face | EN 558-1 | ISA 75.08.01 |
| Testing | EN 12266-1 | API 598 / ANSI FCI 70-2 |
| Flanges | EN 1092-1 | ASME B16.5 |
Applications Across Key Industries
Energy & Power: Steam conditioning, turbine bypass, feedwater control, condensate management.
Chemical & Petrochemical: Corrosive liquids, high-pressure reactors, thermal oil systems, gas control.
Marine & Offshore: Fuel handling, steam lines, boiler systems, cooling water balance control.
Pulp & Paper: Chemical dosing, digester control, steam systems, condensate recovery.
Water & Wastewater: Pressure reduction, chemical treatment dosing, filtration and distribution control.
Why Nordenflow Globe Control Valves Outperform Generic Solutions
Most control valves are built to function; ours are built to maintain process stability, minimize lifecycle cost, and provide long-term plant reliability.
Nordenflow supports customers with:
– Local engineering support in Finland
– Application sizing and selection support
– OEM integration with actuators and positioners
– Lifecycle service and spare parts
– Commissioning and training
Project Support & Integration Services
Don’t leave your process integrity to chance. Our engineering team provides end-to-end support for complex automation loops:
–Custom Actuator Integration: Precision matching with pneumatic, electric, or hydraulic units.
–Material Selection: Expert guidance for corrosive, cryogenic, or high-temp services
—Technical Review: Send us your process data (P1, P2, Temp, Flow) for a comprehensive configuration check.
—-Valve Signature Report: A detailed prediction of performance, including cavitation analysis and dynamic response.
Technical Parameters for Precise Valve Sizing:
To ensure your globe control valve is engineered for longevity and peak performance, our sizing process utilizes standard ISA equations to analyze your specific process conditions. Providing the following parameters allows us to calculate the exact Flow Coefficient (Cv) required:
–Operating Pressures: Inlet Pressure (P₁) and Outlet Pressure (P₂) to determine the actual Pressure Drop (ΔP) across the valve.
–Flow Capacity: Maximum, normal, and minimum Flow Rates (Q) to ensure the valve operates in the “Sweet Spot” (typically 20%–80% open)
-Fluid Characteristics: Process Temperature, Specific Gravity (SG), and Vapor Pressure (Pv) to evaluate and mitigate the risk of Cavitation or Flashing.
-Mechanical Standards: Nominal Pressure (PN/ANSI Class) and pipe schedule to ensure structural integrity and correct velocity control.
Where Q is flow rate (GPM), SG is specific gravity, and (ΔP) is pressure drop (P₁ – P₂).
By analyzing these critical variables, Nordenflow eliminates the risk of Choked Flow and provides a comprehensive Valve Signature Report and ANSI FCI 70-2 Leakage Class verification for every installation.
